Ingest and Catalog Data from Teradata to Amazon S3 with AWS Glue Scripts

Overview​

This quickstart details the process of ingesting and cataloging data from Teradata to Amazon S3 with AWS Glue.

Tip

For ingesting data to Amazon S3 when cataloging is not a requirement consider Teradata Write NOS capabilities.

Prerequisites​

  • Access to an Amazon AWS account
  • Access to a Teradata instance (Teradata Cloud, Teradata Factory, or Teradata Trial)
    Note

    If you need a test instance of Teradata, you can provision one for free at https://www.teradata.com/try

  • A database client to send queries for loading the test data, we recommend Teradata SQL Extension for Visual Studio Code.

Loading of test data​

  • In your favorite database client run the following queries

Amazon AWS setup​

In this section, we will cover in detail each of the steps below:

  • Create an Amazon S3 bucket to ingest data
  • Create an AWS Glue Catalog Database for storing metadata
  • Store Teradata credentials in AWS Secrets Manager
  • Create an AWS Glue Service Role to assign to ETL jobs
  • Create a connection to a Teradata Instance in AWS Glue
  • Create an AWS Glue Job
  • Draft a script for automated ingestion and cataloging of Teradata data into Amazon S3

Create an Amazon S3 Bucket to Ingest Data​

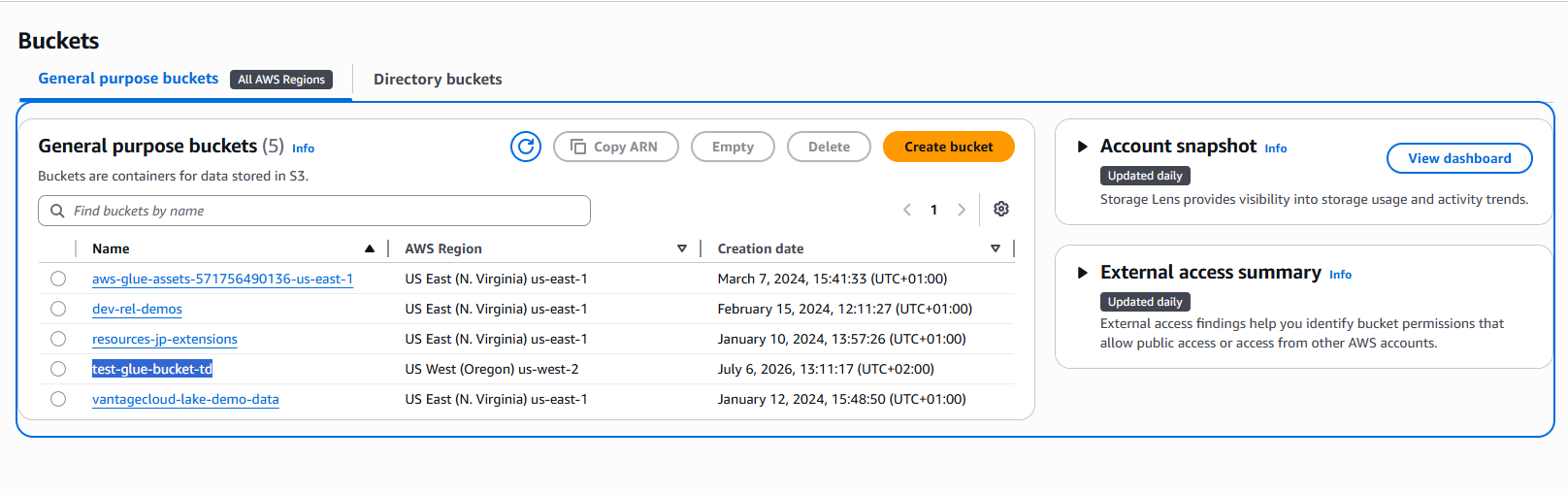

  • In Amazon S3, select Create bucket. create bucket

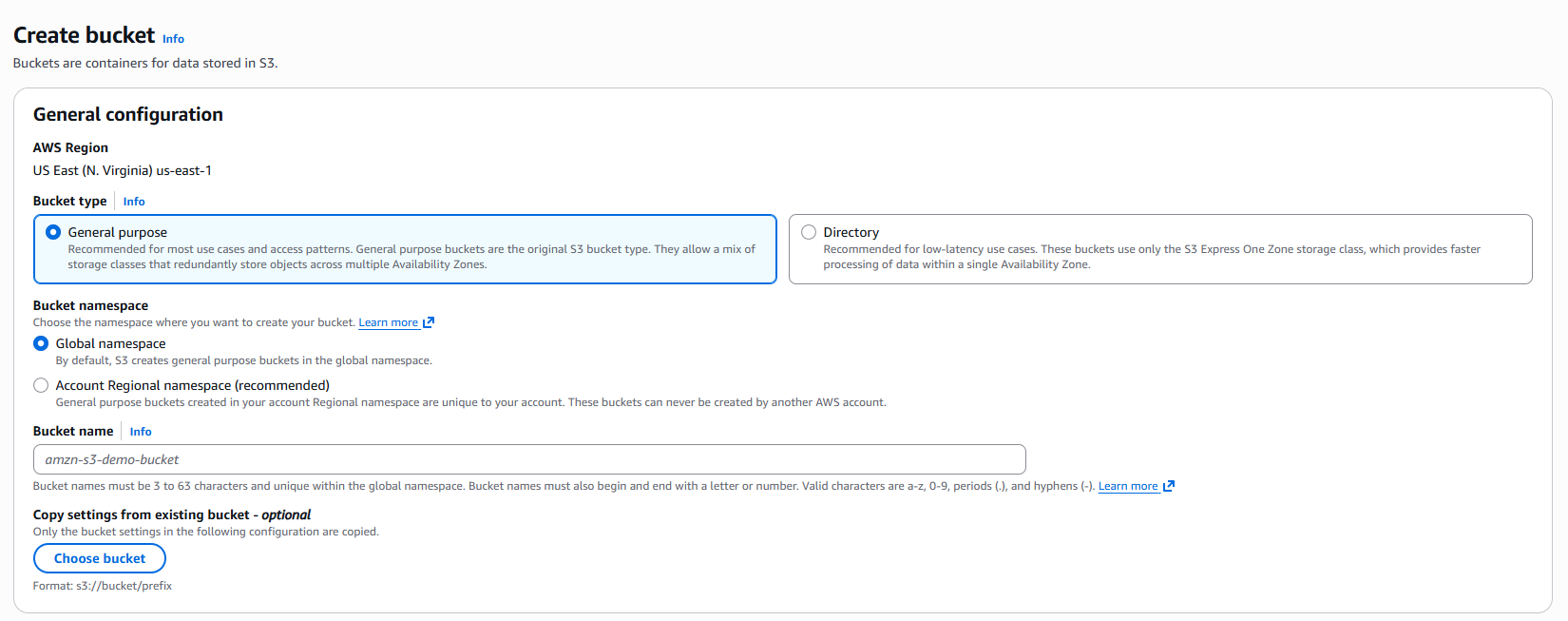

  • Assign a name to your bucket and take note of it. name bucket
  • Leave all settings at their default values.

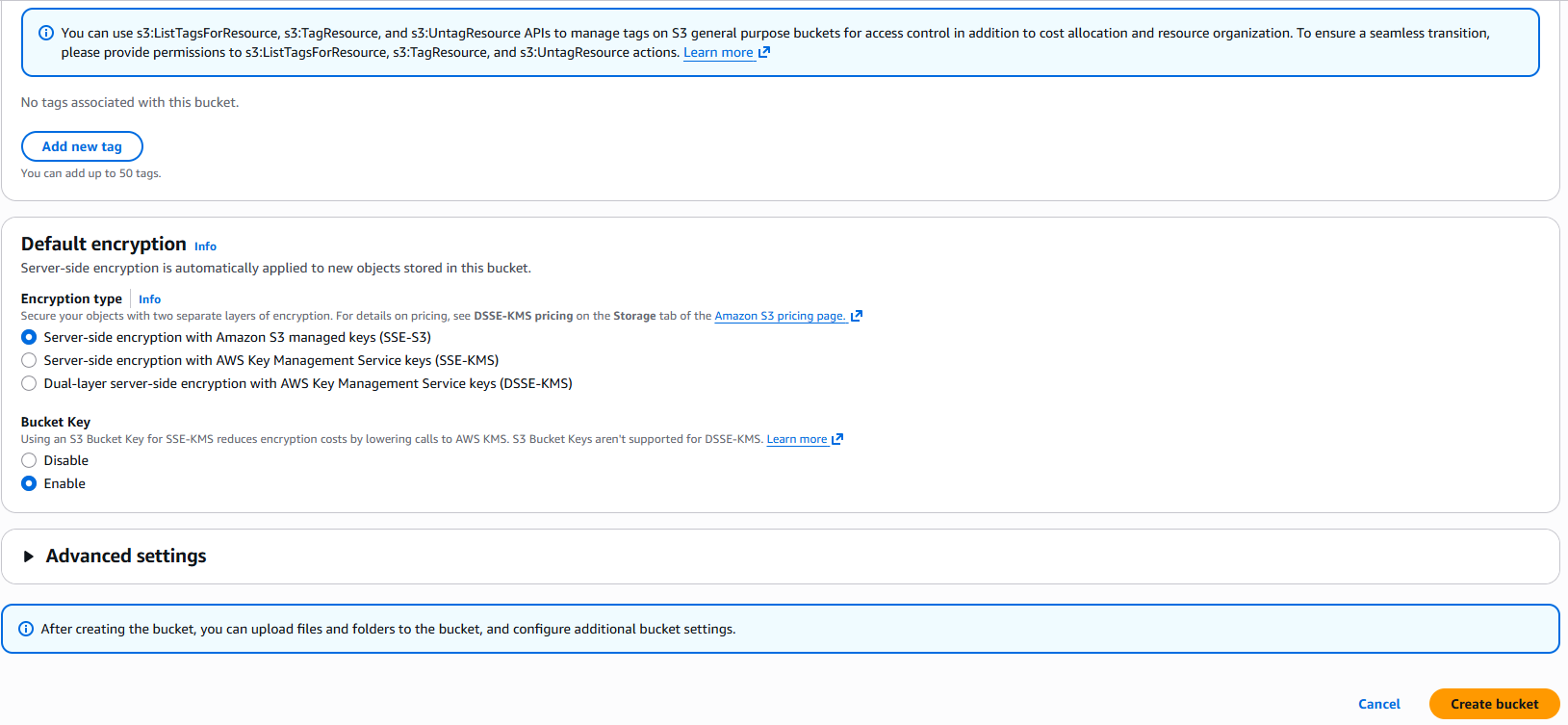

  • Click on Create bucket. save bucket

Create an AWS Glue Catalog Database for Storing Metadata​

  • In AWS Glue, select Data catalog, Databases.

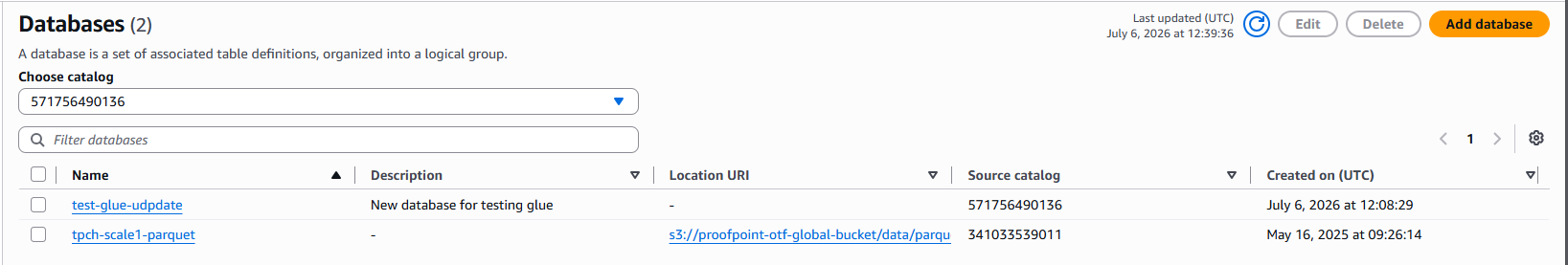

  • Click on Add database. add database

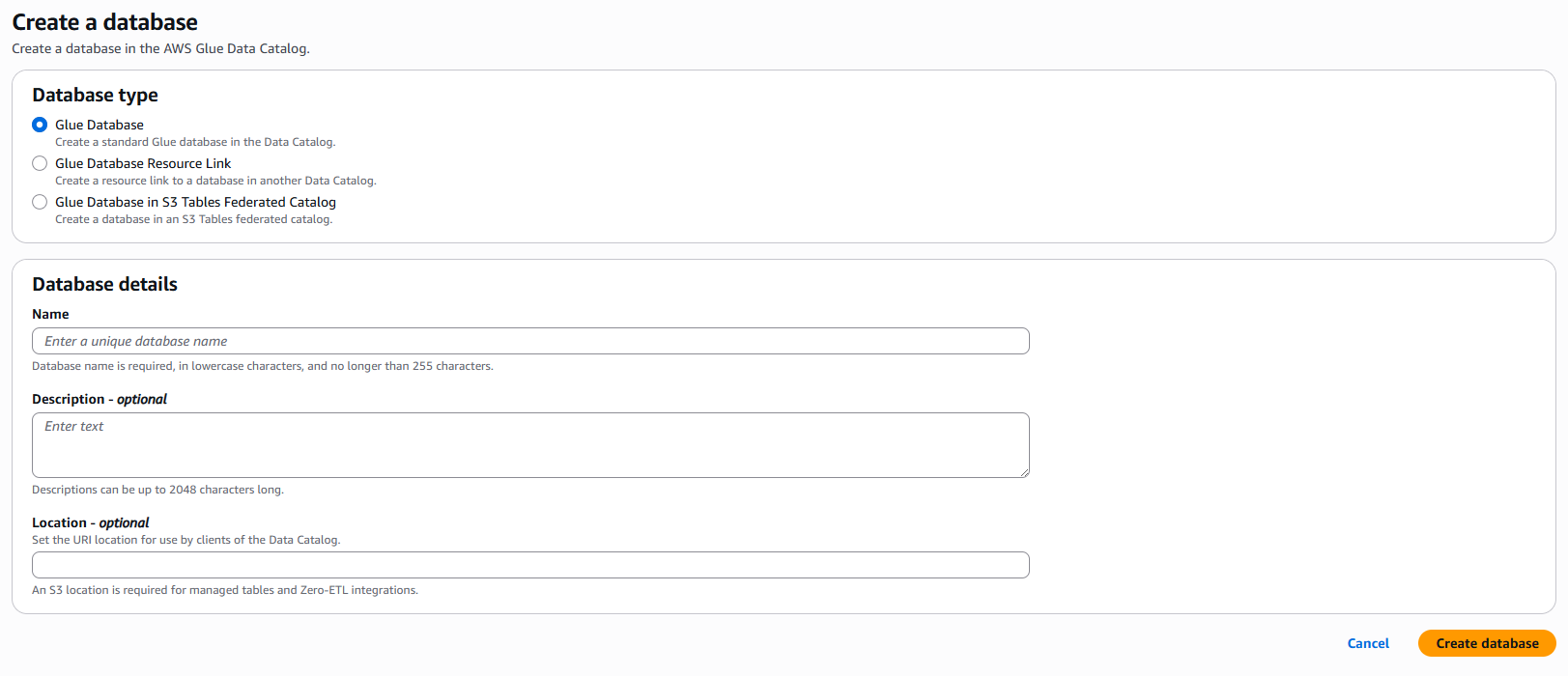

  • Define a database name and click on Create database. add database name

Store Teradata credentials in AWS Secrets Manager​

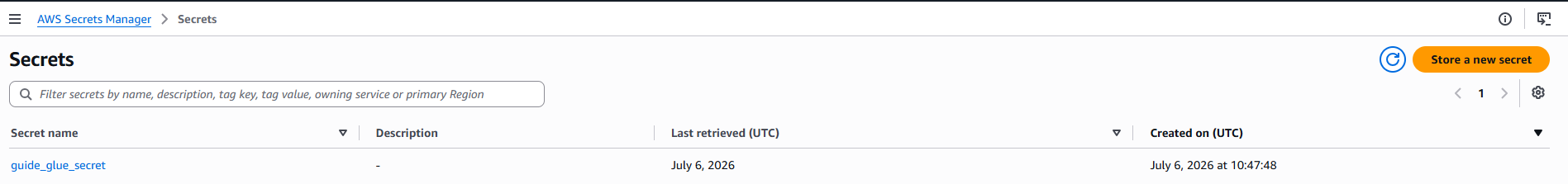

  • In AWS Secrets Manager, select Create new secret. create secret

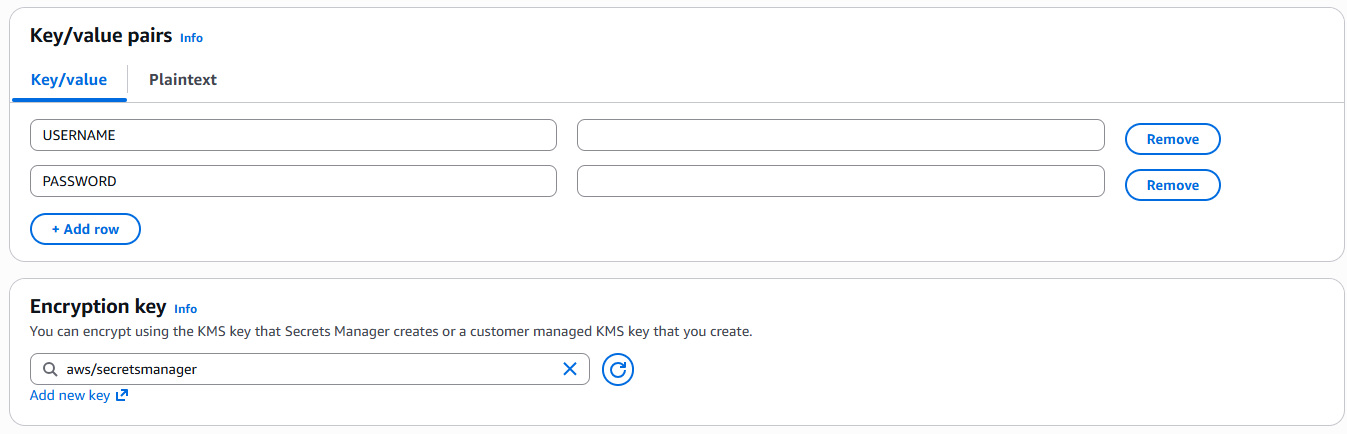

  • The secret should be an Other type of secret with the following keys and values according to your Teradata instance:
    • USERNAME
    • PASSWORD
Tip

In the case of Teradata Trial, the user is always "demo_user," and the password is the one you defined when creating your Teradata Trial environment.

secret values

  • Assign a name to the secret.
  • The rest of the steps can be left with the default values.
  • Create the secret.

Create an AWS Glue Service Role to Assign to ETL Jobs​

The role you create should have access to the typical permissions of a Glue Service Role, but also access to read the secret and S3 bucket you've created.

  • In AWS, go to the IAM service.

  • Under Access Management, select Roles.

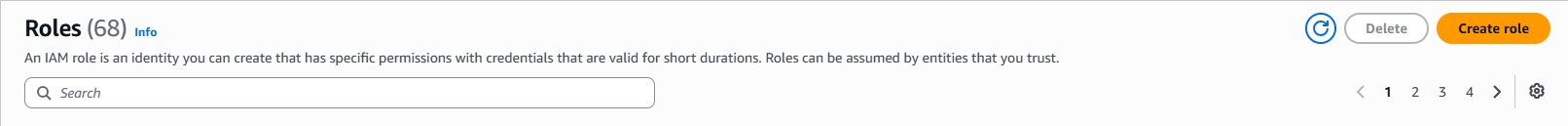

  • In roles, click on Create role. create role

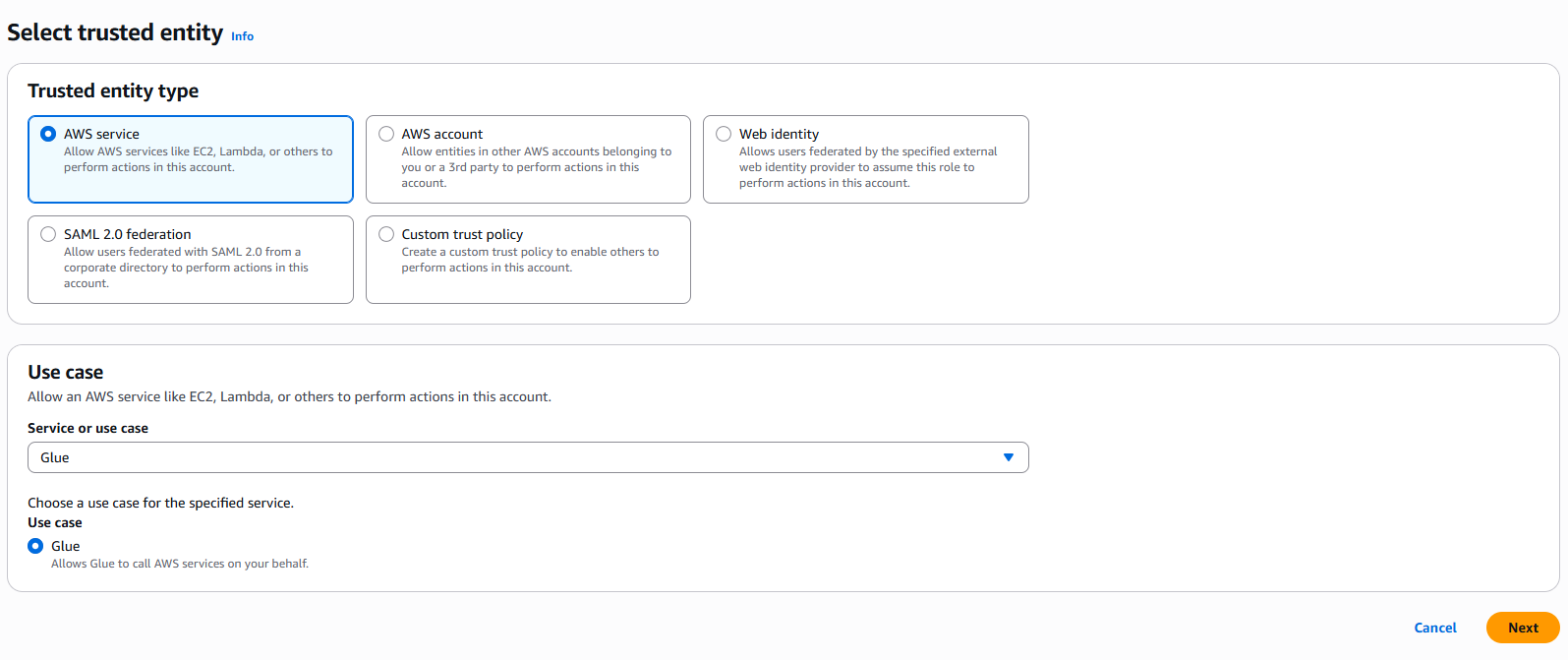

  • In select trusted entity, select AWS service and pick Glue from the dropdown. role type

  • In add permissions:

    • Search for AWSGlueServiceRole.
    • Click the related checkbox.
    • Search for SecretsManagerReadWrite.
    • Click the related checkbox.

  • In Name, review, and create:

    • Define a name for your role.

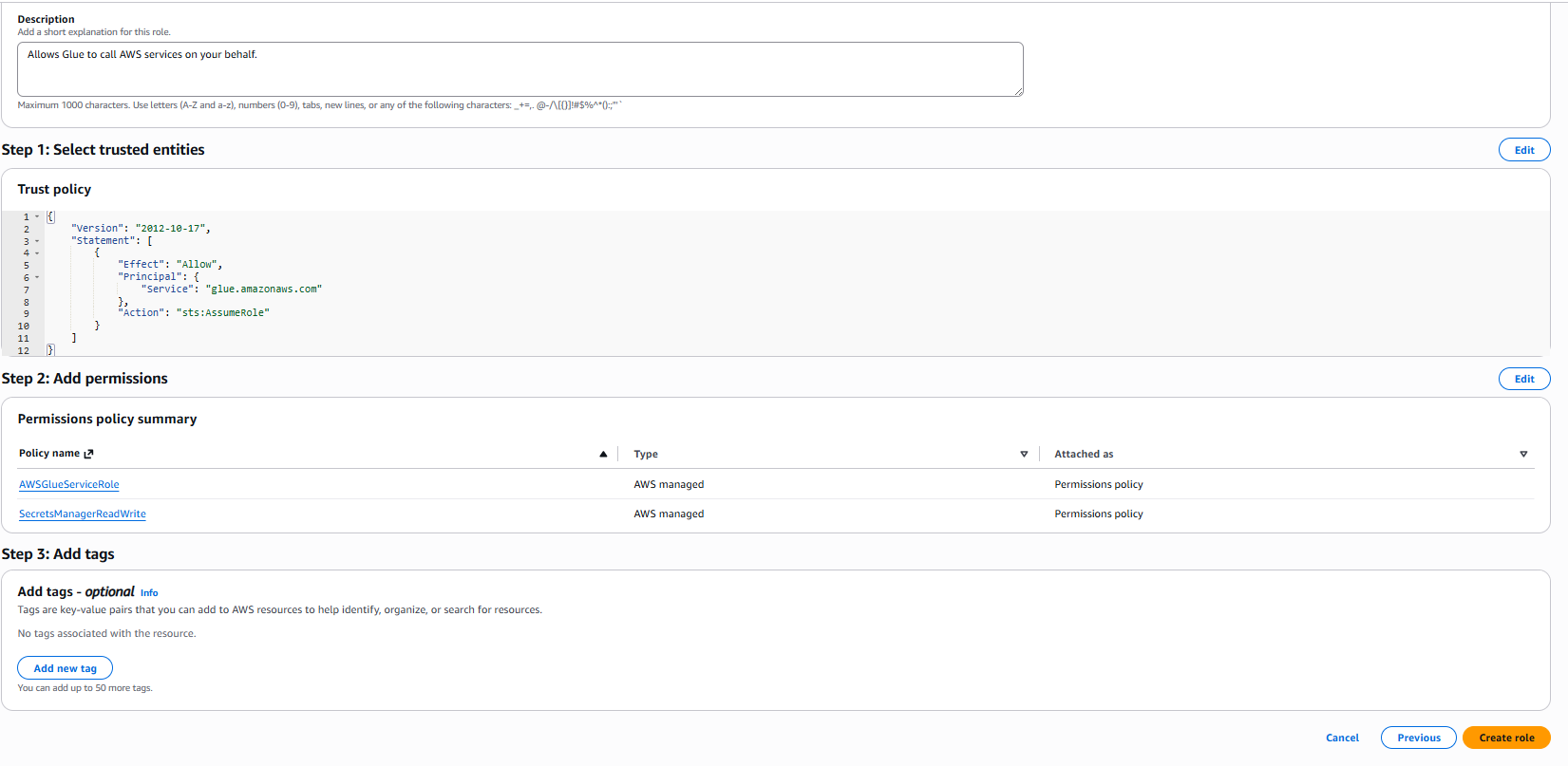

    • Click on Create role. name role

  • Return to Access Management, Roles, and search for the role you've just created.

  • Select your role.

  • Click on Add permissions, then Create inline policy.

  • Click on JSON.

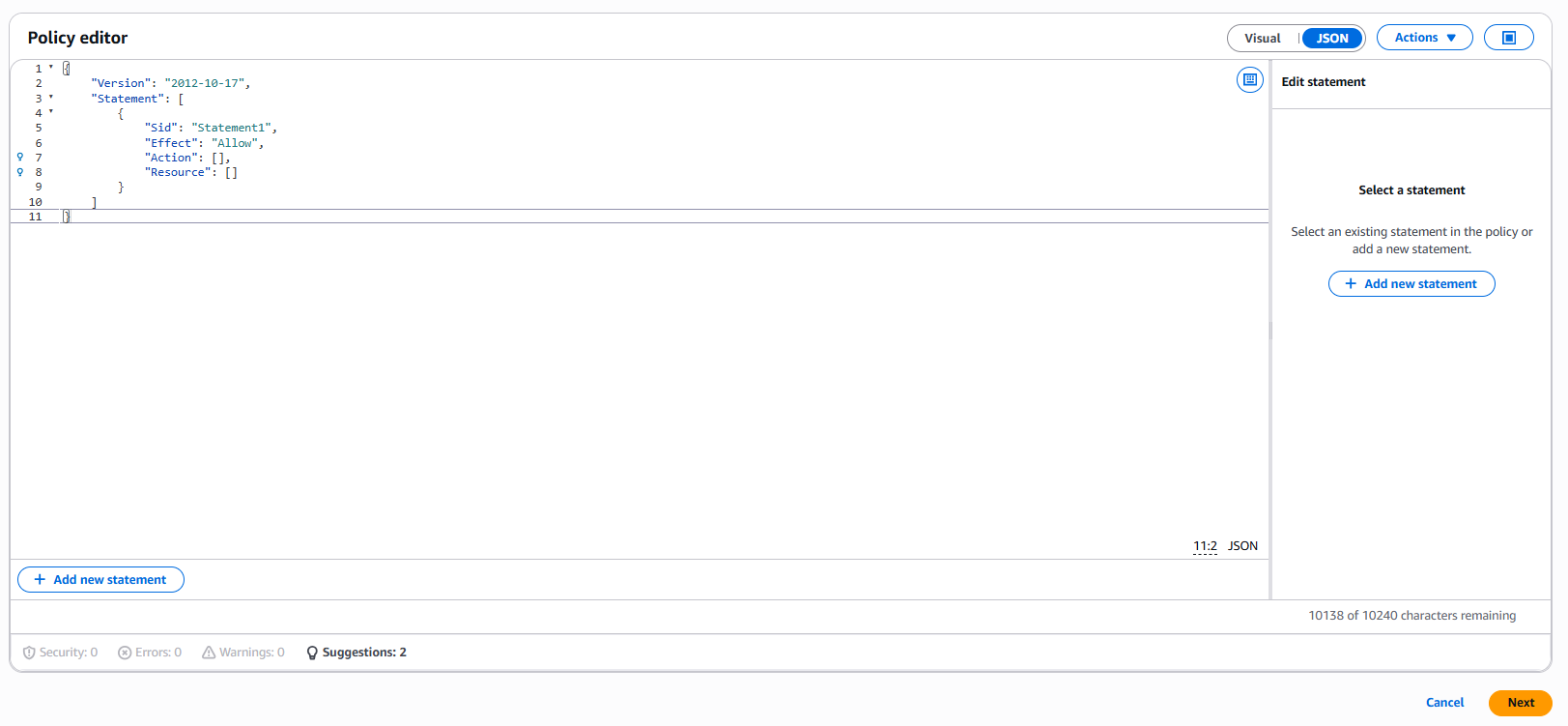

  • In the Policy editor, paste the JSON object below, substituting the name of the bucket you've created.

  • Click Next. inline policy
  • Assign a name to your policy.
  • Click on Create policy.

Create a connection to a Teradata Instance in AWS Glue​

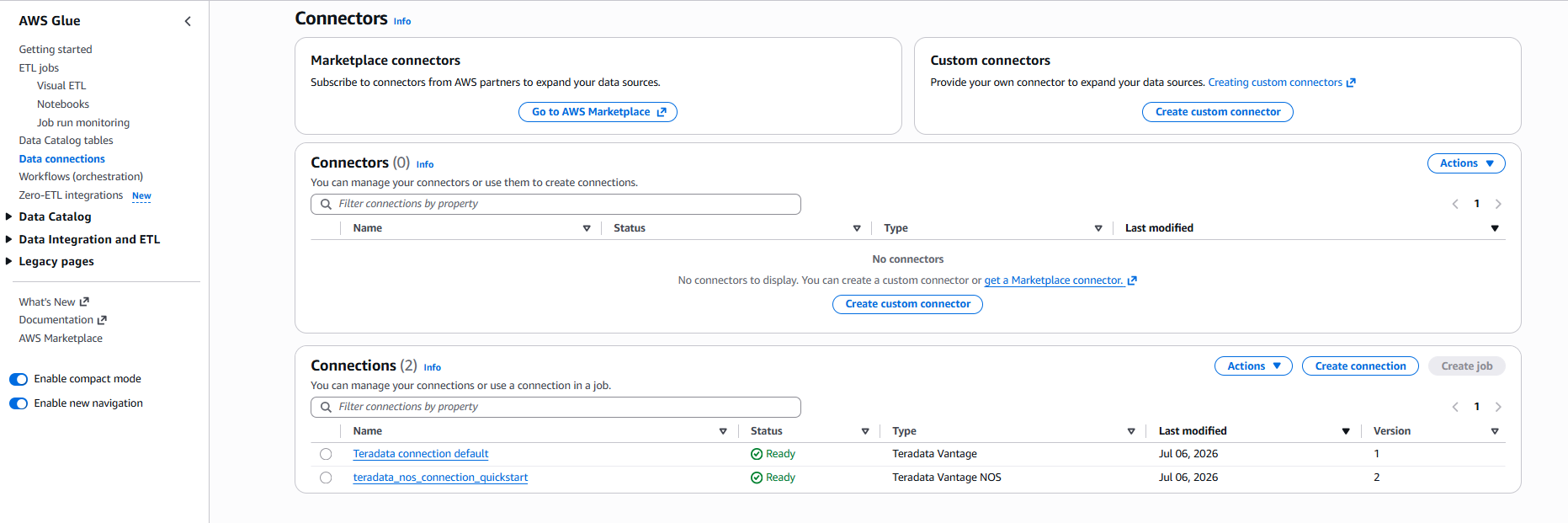

  • In AWS Glue, select Data connections. connection
  • Under Connectors, select Create connection.

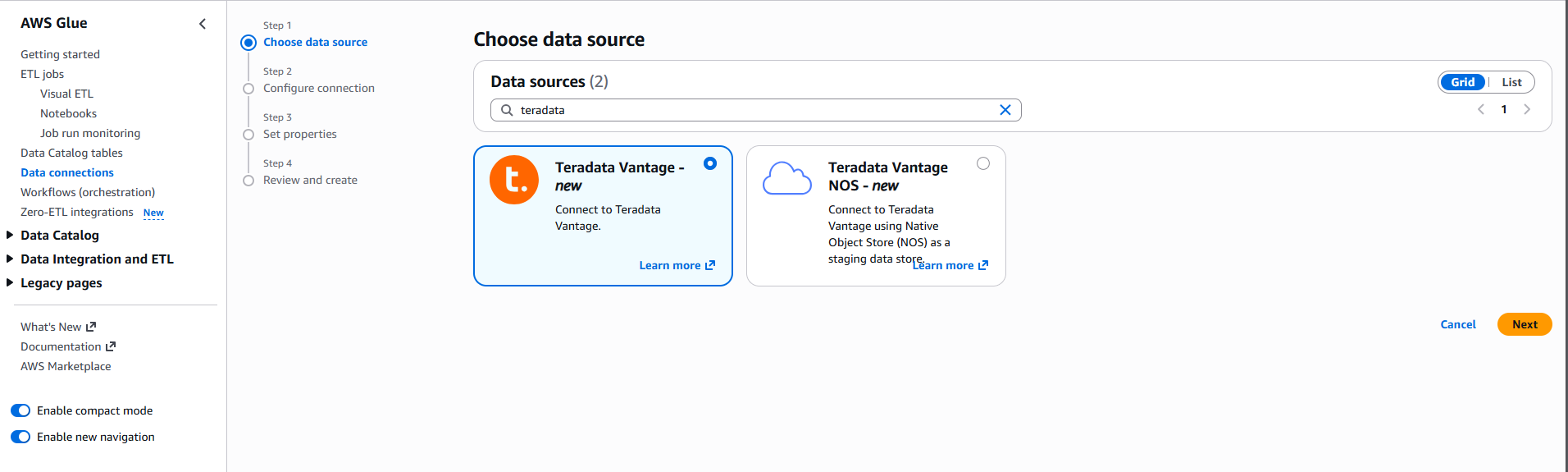

  • Search for and select the Teradata data source, as shown in the image. teradata type

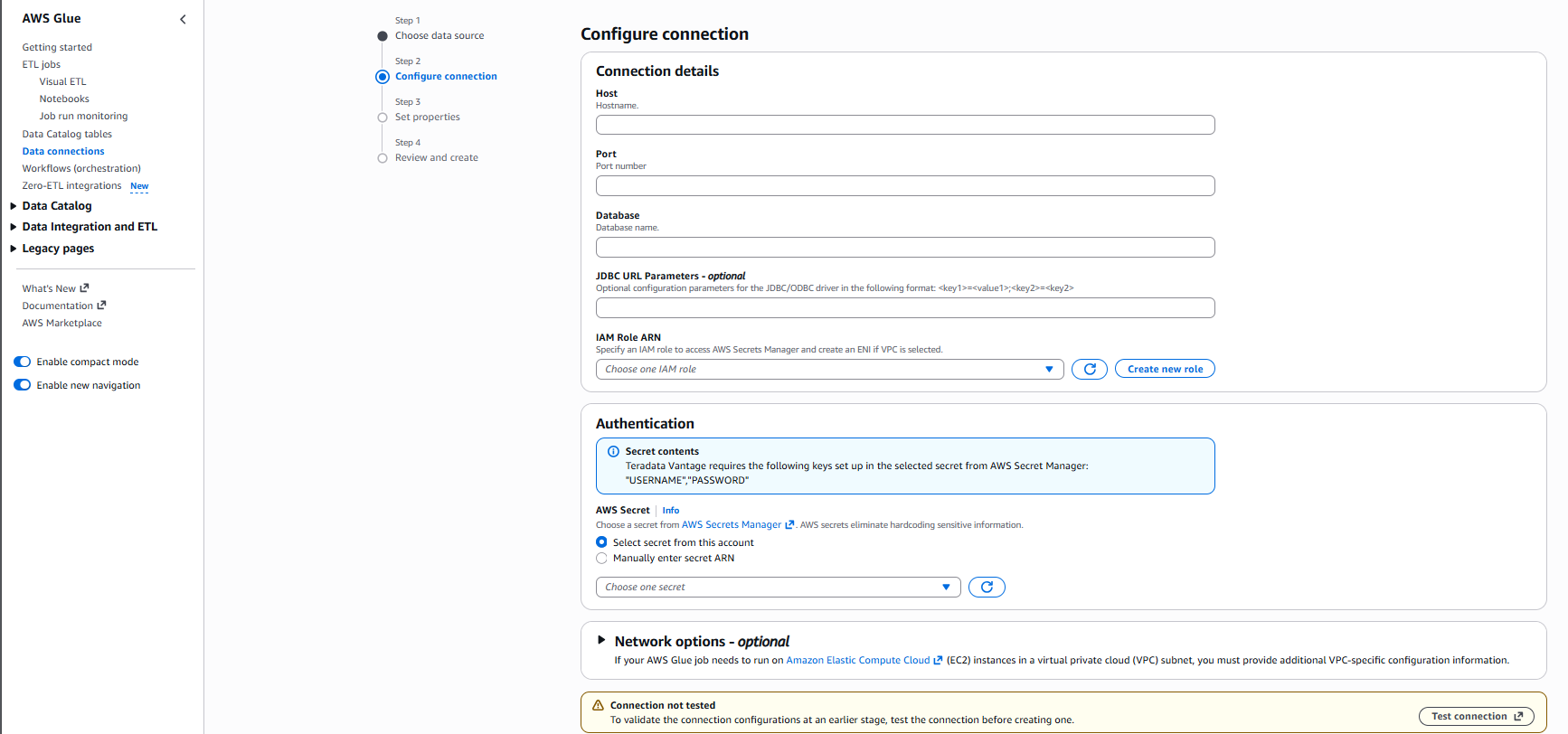

  • Enter the information required by the dialog box.
  • Select the AWS Secret created in the previous step.
  • Name your connection and finish the creation process. connection configuration

Create an AWS Glue Job​

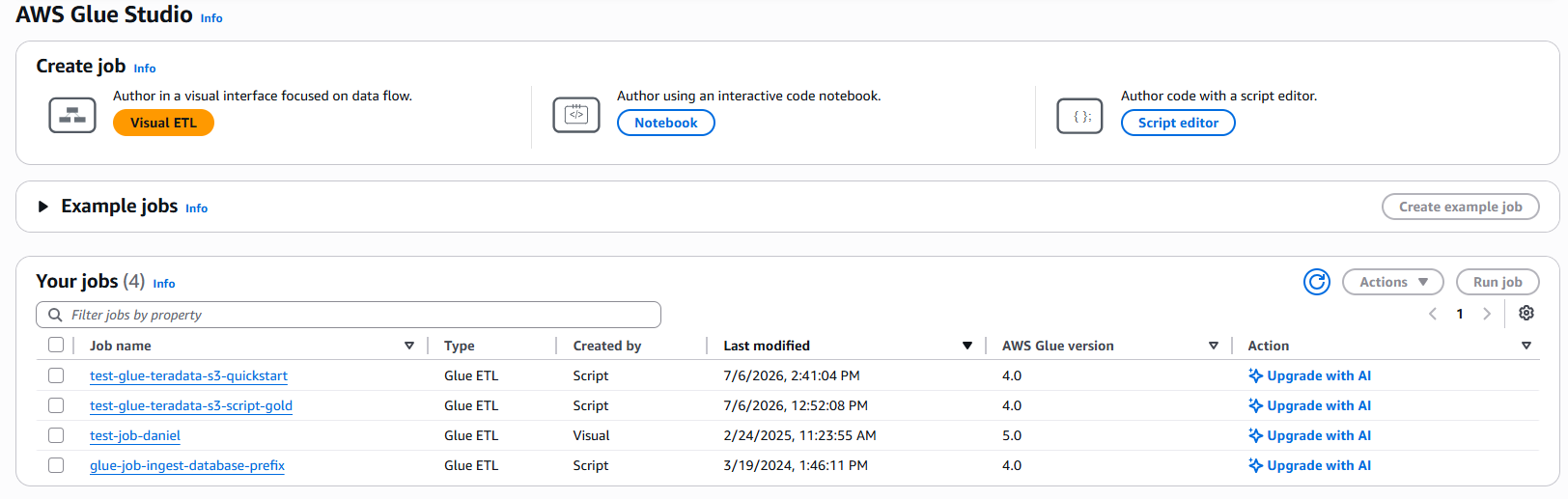

  • In AWS Glue, select ETL Jobs and click on Script editor. script editor creation

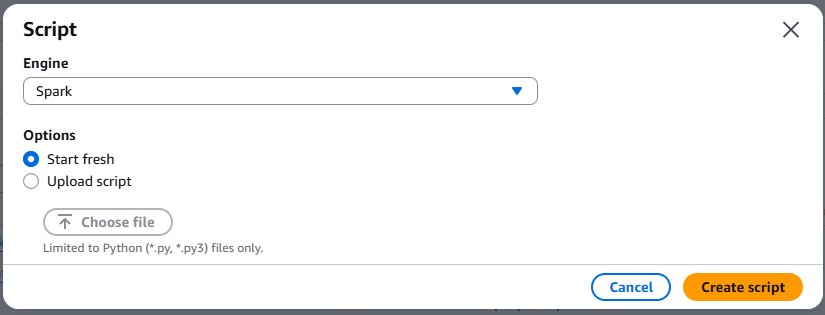

  • Select Spark as the engine and choose to start fresh. script editor type

Draft a script for automated ingestion and cataloging of Teradata data into Amazon S3​

  • Copy the following script into the editor.
    • The script requires the following modifications:
      • Substitute the name of your S3 bucket.
      • Substitute the name of your Glue catalog database.
      • Substitute the name of the Teradata Connection with the one you've just created.
      • If you are not following the example in the guide, modify the database name and the tables to be ingested and cataloged.
      • For cataloging purposes, only the first row of each table is ingested in the example. This query can be modified to ingest the whole table or to filter selected rows.

  • In Job details, Basic properties:

    • Assign a name to your script
    • Select the IAM role you created for the ETL job.

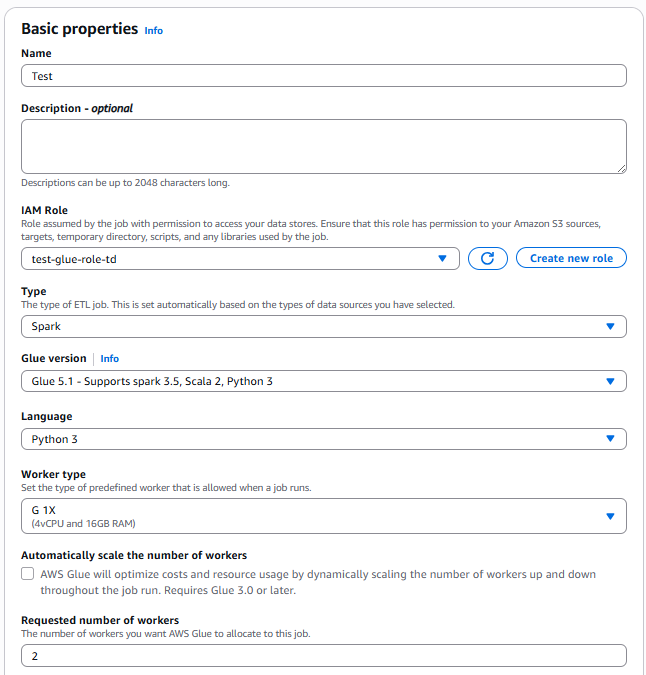

    • For testing, select "2" as the Requested number of workers, this is the minimum allowed. script in editor

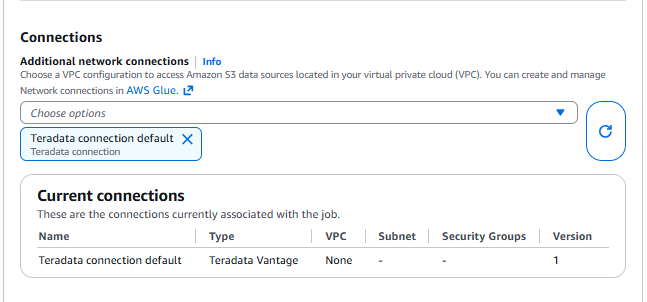

  • In Advanced properties, Connections select your connection to Teradata.

Tip

The connection created must be referenced twice, once in the job configuration, once in the script itself.

script configurations

  • Click on Save.
  • Click on Run.
  • The ETL job takes a couple of minutes to complete, most of this time is related to starting the Spark cluster.

Checking the Results​

  • After the job is finished:
    • Go to Data Catalog, Databases.
    • Click on the catalog database you created.
    • In this location, you will see the tables extracted and cataloged through your Glue ETL job.

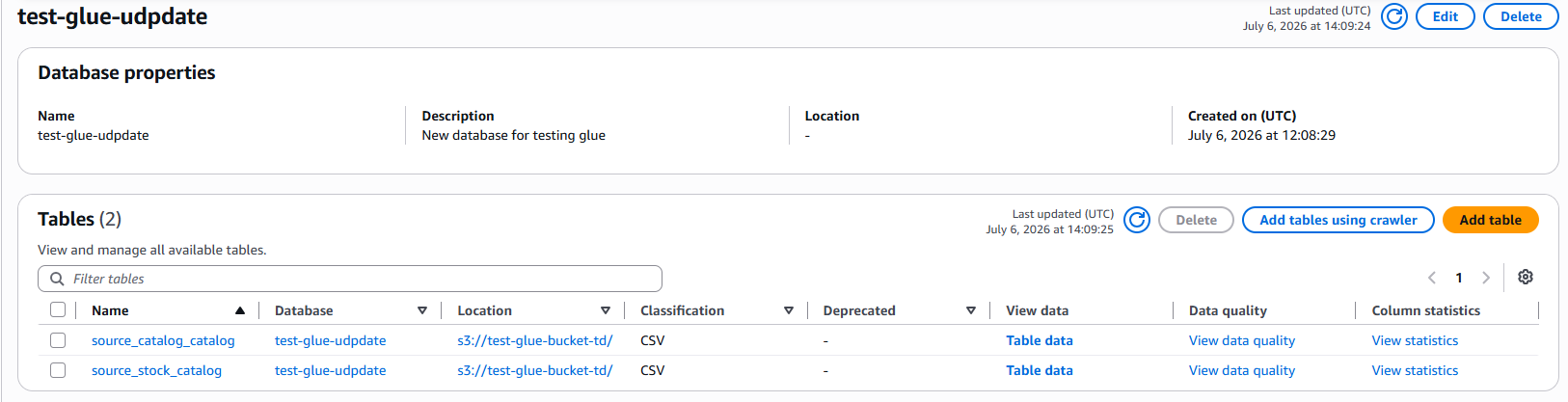

result tables

  • All tables ingested are also present as compressed files in S3. Rarely, these files would be queried directly. Services such as AWS Athena can be used to query the files relying on the catalog metadata.

Summary​

In this quick start, we learned how to ingest and catalog data from Teradata to Amazon S3 with AWS Glue Scripts.
